Description
PREVIOUSLY KNOWN AS CLINGON MINI

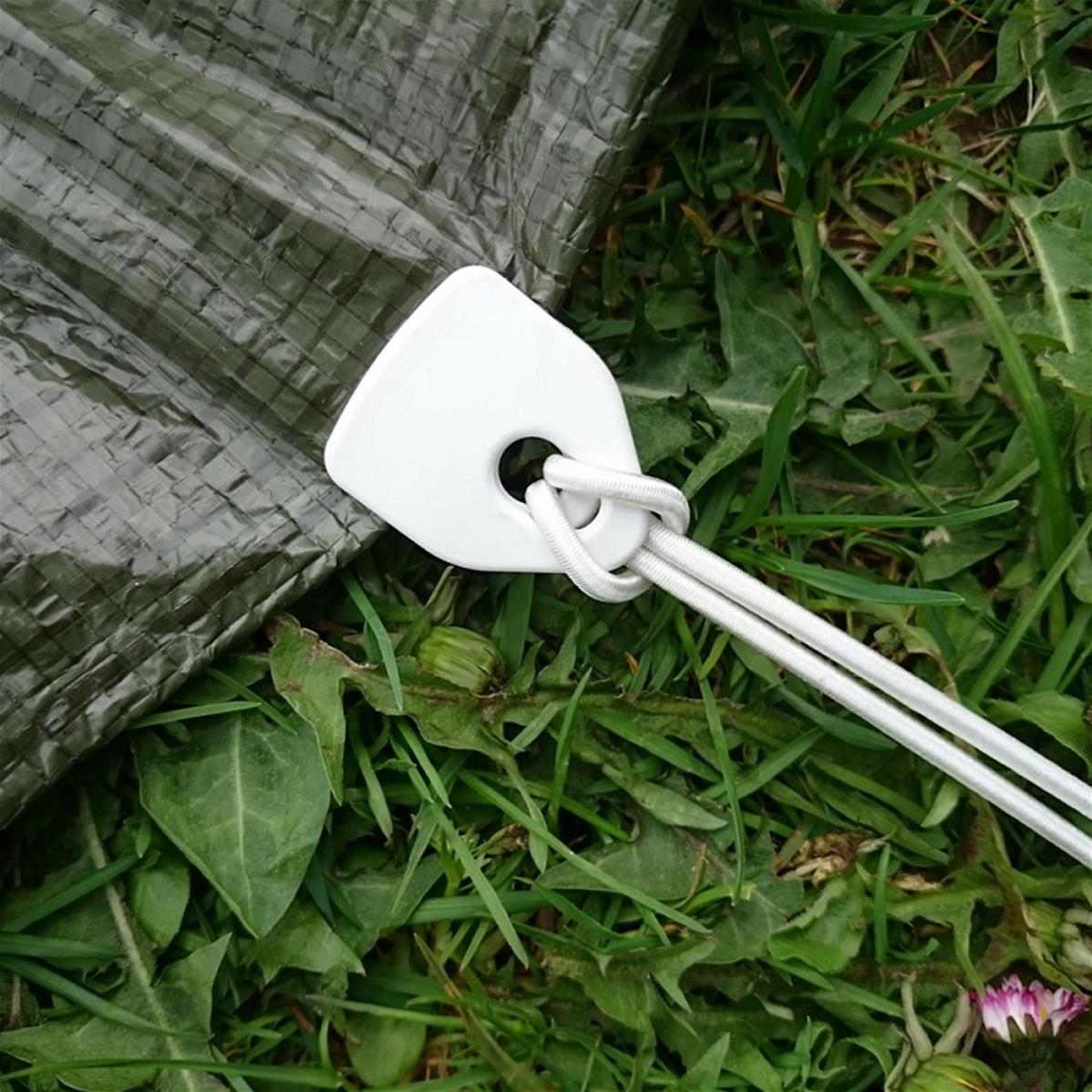

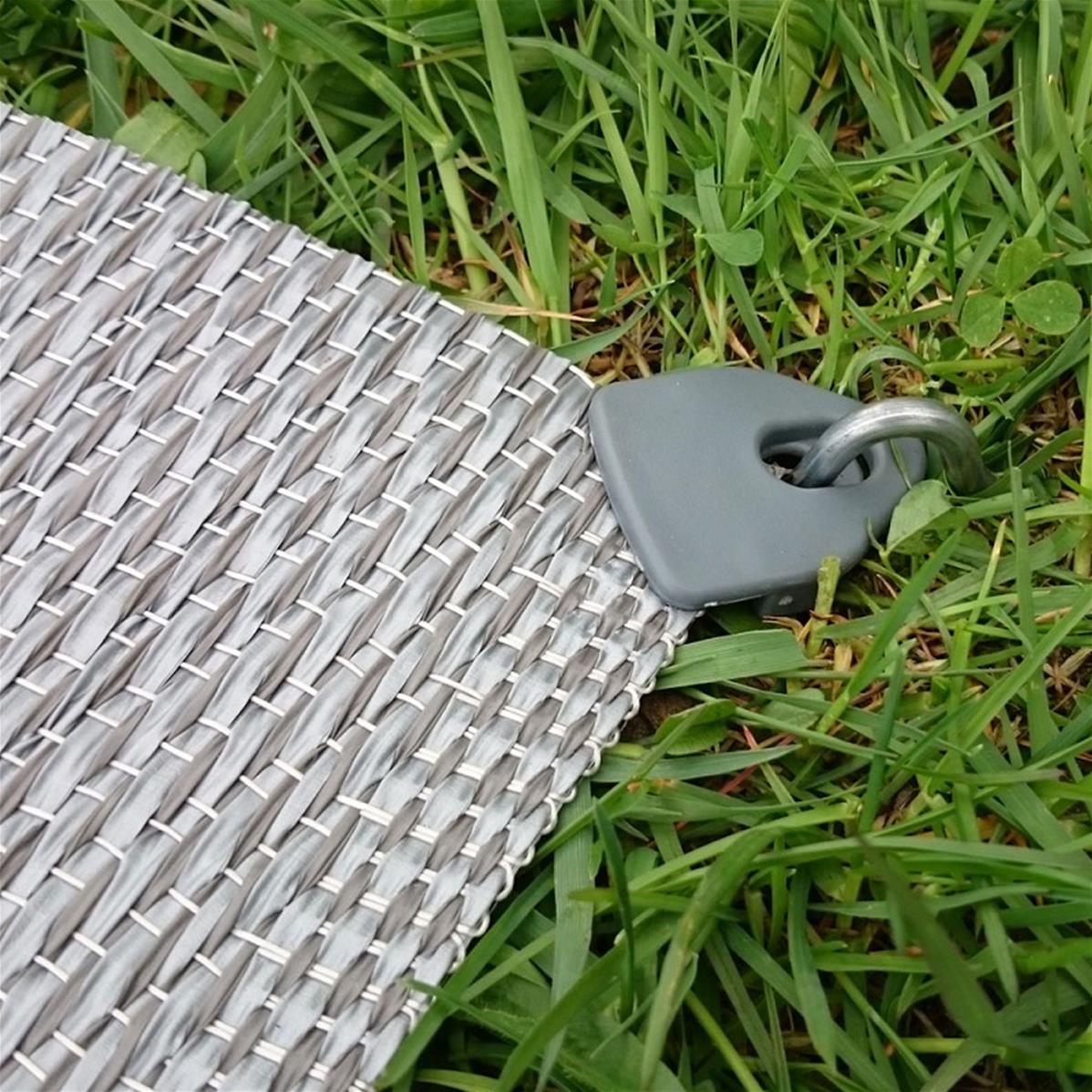

Simple and easy to fit, these hard wearing, reusable eyelet clips instantly create a strong securing point, or eyelet, on any type of tarpaulin, canvas and synthetic sheet material, wherever you want, in seconds – no tools required, no damage to the material.

Features

- Simple, fast and effective,

- The heavier the load the tighter the grip,

- Can be used over and over again,

- Can easily be repositioned in seconds,

- Grips any hemmed, or non-hemmed, fabric up to 5mm thick firmly and instantly,

- Quick release mechanism.

Specification
Length: 40mm
Width: 35mm
Height: 10mm
Tested to support over 40kg


Holdon® in white contains UV stabilizers, black Holdon® protected by pigment additive causing UV blocking.

Temperature range:-30°C to 100°C melting temperature at 220°C

Median loading capacity*:40 kilograms

Max. fabric thickness:6 mm



Materials
Material specification: Produced in Sweden from glass fibre reinforced nylon 6.


*Median loading - explanation

Median loading capacity is determined by a series of separate static loadings applied to a single Holdon® installed on a 680/700 gms/sq.mtr. vinyl fabric (without hem). The median loading capacity represents the approximate safe working load that can be applied to the Holdon®, and in general terms determines the safe load bearing capacity of the bridge within the sleeve component. IMPORTANT – the median loading capacity does not represent the efficiency, or holding/gripping power, or efficiency of the Holdon® - those elements of performance are determined by both the correct application of the Holdon® and by the physical characteristics of the fabric/substrate onto which the Holdon® is being applied.
